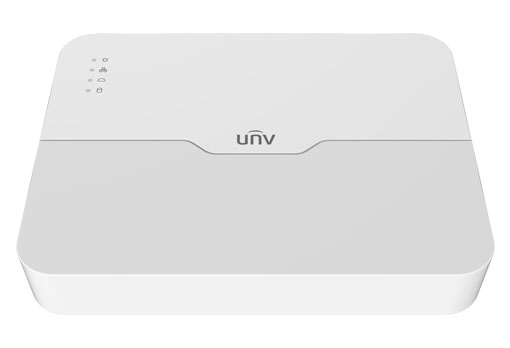

NVR301-08LS3-P8 | UNV 8-ch 1-SATA Ultra 265/H.265/H.264 PoE NVR
• Support Ultra 265/H.265/H.264 video formats
• 8-channel input
• Plug & Play with 8 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
• HDMI and VGA simultaneous output
• Up to 4K resolution recording
• 1 SATA HDD up to 6 TB
• Support cloud upgrade
Product Specification
| Model | NVR301-08LS3-P8 | NVR301-16LS3-P8 |
| Video/Audio Input | ||
| IP Video Input | 8-ch | 16-ch |
| Network | ||
| Incoming Bandwidth | 64Mbps | |
| Outgoing Bandwidth | 48Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Audio Compression | G.711A, G.711U | |
| Synchronous Playback | 8-ch | 16-ch |
| Liveview display | 1/4/6/8/9 | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
| Snapshot | ||
| FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution | |
| Decoding | ||
| Decoding format | Ultra 265/H.265/H.264 | |
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25 |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | up to 6TB for each disk | |
| Smart | ||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) | |
| VCA Search | Behavior Search | |
| Smart Intrusion Prevention (SIP) by Camera | 4-ch(Alarm only, no image) | |
| UMD by Camera | 4-ch | |
| General Alarm | ||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| RS232 | NA | |
| RS485 | NA | |
| Alarm In | NA | |
| Alarm Out | NA | |
| PoE | ||
| Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface | |
| Max Power | Max 30W for single port Max 75W in total | |
| Supported Standard | IEEE 802.3at, IEEE 802.3af | |
| General | ||
| Power Supply | 52V DC Power Consumption: ≤9 W (without HDD) | |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 270mm × 205mm × 46mm (10.6"×8.1"×1.8") | |
| Weight (without HDD) | ≤0.8 kg (1.76 lb) | |
| Certification | ||
| Certification | CE, FCC, UL, RoHS, WEEE | |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | |
| FCC | Part15 Subpart B, ANSI C63.4 | |
