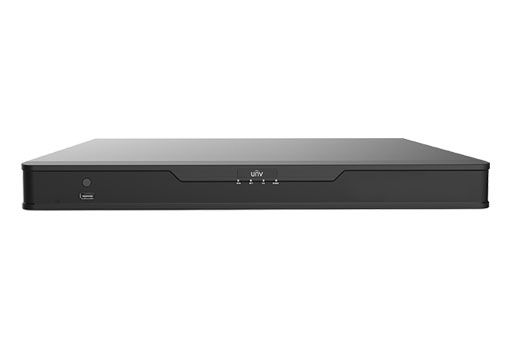

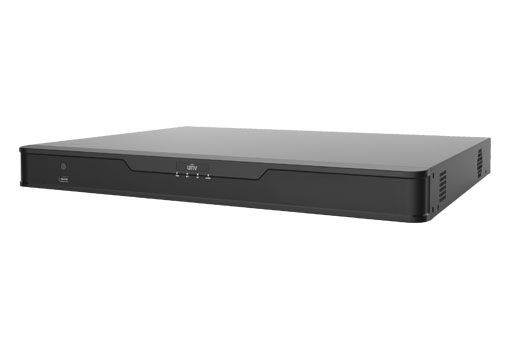

NVR304-16E2 | UNV 16 Channels Ultra H.265/H.265/H.264 NVR, No HDD
• Support Ultra H.265/H.265/H.264 video formats
• 16 channel input
• Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
• Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
• HDMI and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• 4 SATA HDDs, Up to 6TB for each HDD
• Support RAID 1, 5
• Various fisheye dewarping modes for live view and playback for both web interface and GUI
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
| SKU | NVR304-16E2 |
|---|---|
| Manufacturer | Uniview |
| NDAA | Compliant |
| IP Channels | 16 Channels |
| Harddrive Size | No HDD |
| Protocols | Uniview Protocols, ONVIF protocols |
| Features | Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HDMI Output (720p/1080p), Two-way Audio |
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Compression | Ultra 265, H.265, H.264 |
| Bandwidth | Incoming Bandwidth: 320Mbps, Outgoing Bandwidth: 320Mbps |
| Operating temperature | -10°C~+ 55°C (+14°F~+131°F) |
| Dimensions | 440mm × 344mm × 48mm (17.3" × 13.5"× 1.9") |
| Voltage | 12VDC |
| Power Consumption | ≤ 12 W |
| Network | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| SATA | 4 SATA interfaces |
| USB | Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0 |
| Audio | 1-ch, RCA |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| HDMI Output (720p/1080p) | Yes |
| Two Way Audio | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
