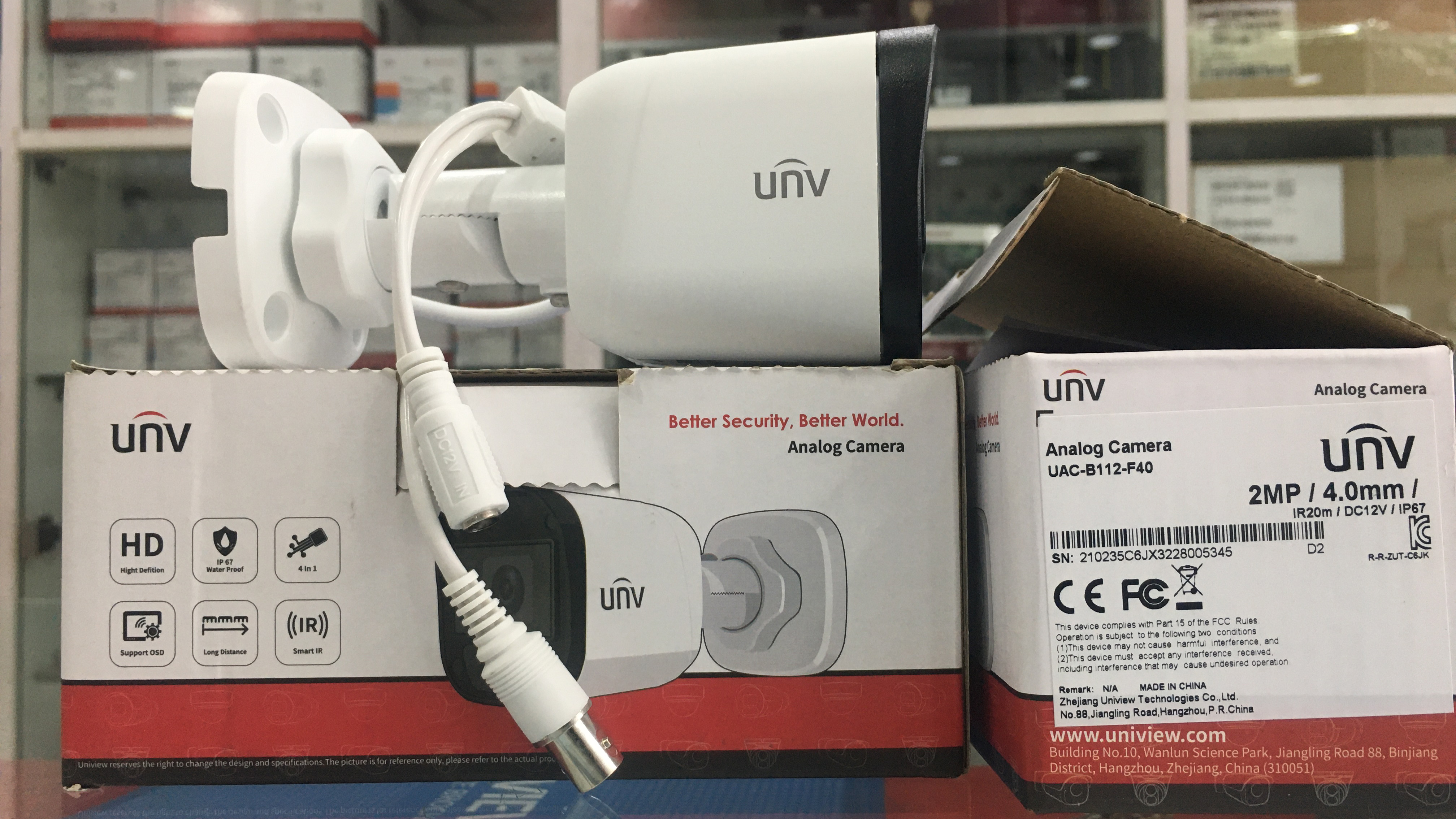

UNV UAC-B112-F28(40): A 2MP HD Fixed IR Mini Bullet Analog Camera Excellence in Surveillance for Nepal

10 Aug

In the realm of modern surveillance technology, the UNV UAC-B112-F28(40) camera, distributed by Samari IT Solution Pvt. Ltd., stands as a beacon of innovation, offering functionality, reliability, and adaptability tailored to Nepal's security landscape. This 2MP HD Fixed IR Mini Bullet Analog Camera is meticulously designed to cater to both residential and commercial security needs, providing unparalleled image quality, versatility, and robustness. In this comprehensive article, we delve into the intricate details of the UAC-B112-F28(40) camera, exploring its features, specifications, and diverse applications within the Nepali context.

Image Clarity and Sensitivity: At the heart of every surveillance system lies image quality, and the UAC-B112-F28(40) camera excels in this realm. With a 2MP sensor and a minimum illumination of 0.02 lux at F2.0 (AGC ON), this camera ensures crystal-clear visuals even in challenging low-light scenarios. When night descends, the camera seamlessly transitions with its integrated IR illuminator, guaranteeing impeccable visibility with zero lux, effectively covering an impressive 20-meter distance. This feature proves indispensable for maintaining security during nighttime hours.

Lens and Viewing Angle: Distinguishing itself through adaptability, the UAC-B112-F28(40) camera offers two distinct models to suit varying surveillance requirements. The UAC-B112-F40 features a 4.0mm lens, granting a field of view with angles measuring H: 80.2°, V: 40.7°, and D: 90.5°. On the other hand, the UAC-B112-F28 boasts a 2.8mm lens, providing a broader perspective with angles measuring H: 90.5°, V: 49.6°, and D: 109.5°. These lenses eliminate blind spots and enhance coverage efficiency, making them perfect for a multitude of settings.

Video Resolution and Frame Rate: The UAC-B112-F28(40) camera epitomizes flexibility through its customizable video resolution and frame rates. With resolutions of 1080P (1920x1080) and 720P (1280x720), users can tailor the settings to their unique monitoring needs. The camera supports TVI, AHD, CVI, and CVBS video outputs, offering frame rates of up to 30fps for 1080P and 720P resolutions. This adaptability ensures seamless integration with a wide spectrum of surveillance systems.

Advanced Image Enhancement: The UAC-B112-F28(40) camera includes advanced features dedicated to augmenting image quality. These encompass Global, BLC, HLC, and DWDR exposure modes, permitting the camera to acclimate effortlessly to varying lighting conditions. The Day/Night modes adjust settings automatically for optimized image capture, ensuring pristine visuals throughout the day and night. Furthermore, the Digital Noise Reduction (2D DNR) technology reduces image noise, guaranteeing clarity in every frame.

Durability and Protection: Crafted to withstand diverse environments, the UAC-B112-F28(40) camera boasts an IP67 rating, providing defense against dust and water intrusion. Operating smoothly within a temperature range of -30℃ to 60℃ (-22℉ to 140℉), this camera is well-suited for a myriad of conditions. The camera's 4KV surge protection adds an additional layer of safeguarding against electrical fluctuations.

Installation and Configuration: Installation simplicity is a hallmark of the UAC-B112-F28(40) camera. Its compact dimensions (142mm x 63mm x 65mm) facilitate positioning in various locations. The package includes a 3D bracket, and users have the choice of mounting it on surfaces, poles, or optional backboxes. The camera's power interface employs a 5.5mm connector, and it operates on DC 12V with reverse polarity and surge protection, ensuring a prolonged operational lifespan.

Additional Features for Seamless Operation: The UAC-B112-F28(40) camera comes packed with features that enhance usability and customization. These include the ability to support 180° horizontal flip and 180° vertical flip, allowing flexibility in camera placement. The OSD configuration menu, available in 11 languages, simplifies camera setup and management, ensuring ease of operation.

Conclusion: The UNV UAC-B112-F28(40) camera series, distributed by Samari IT Solution Pvt. Ltd., encapsulates versatility and high-performance within a 2MP HD Fixed IR Mini Bullet Analog Camera. With its exceptional image quality, adaptable video settings, and robust design, this series emerges as a trusted solution for Nepal's residential and commercial security requirements. Whether it's safeguarding a home, office, or retail space, the UAC-B112-F28(40) camera ensures unparalleled surveillance capabilities, instilling confidence and peace of mind.

Certifications: The UNV UAC-B112-F28(40) camera is equipped with essential certifications, including CB, CE, and FCC. CB Certification ensures compliance with international safety standards, while the CE mark indicates conformity with European Union directives. The FCC certification confirms adherence to electromagnetic compatibility and radiofrequency exposure standards, assuring users of safety, quality, and regulatory compliance.

For further insights on the UNV UAC-B112-F28(40) camera and its potential to elevate your security setup, please reach out to us.

More Blogs

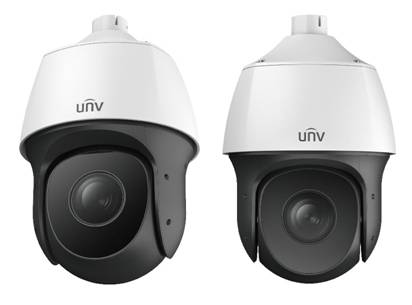

Navigating New View – UNV Navigator PTZ Dome Camera

Uniview, the world’s leading video surveillance manufacturer, recently launched new PTZ dome camerasIPC6322LR-X22-C and IPC6322SR-X22P-C, which are named as Navigator.

5 Reasons To Switch To Wireless Earbuds

Let’s face it, the 1990s are long gone and wireless is the future. With technology evolving every single day, quality headphones today are all wireless.

S2 Series NVR – the Most Wanted NVR

UNV S2 Series NVR is the latest in Uniview’s Easy Series featuring extremely cost-effective performance and user-friendly experience.

7 Essential Mobile Accessories For College Students

College is the perfect time for students to start a new chapter of their lives and set new goals. This is also the time when out of various gadgets like tablets, laptops, etc.

5 Times When Wired Earphones Proved Better Than Wireless

Choosing between wired and wireless has more to do with how the user intends to use them most of the time. Wireless earbuds are ideal for active lifestyles as they favor secure fits and durable constructions

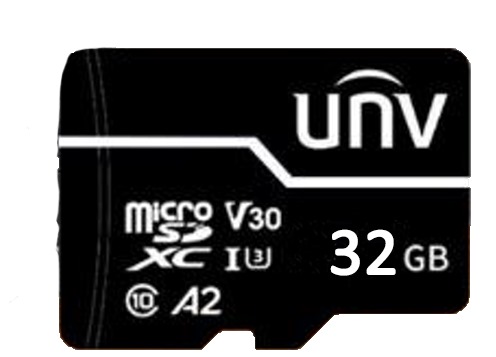

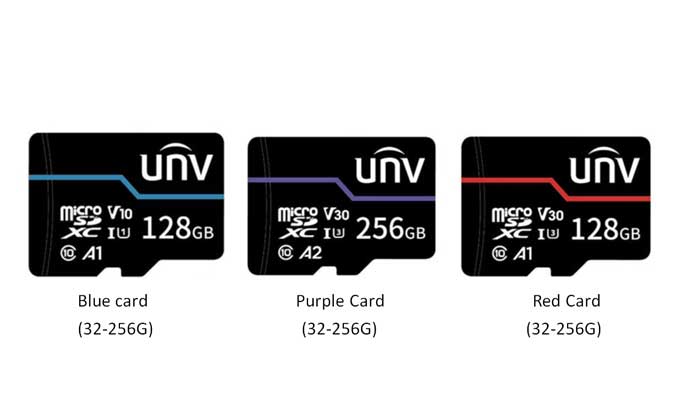

Uniview's Micro SD TF Cards: Edge Surveillance Storage Solutions in Nepal through Samari IT Solution

Discover the future of surveillance storage with Uniview's Micro SD TF card product line, comprising the UNV Blue, Purple, and Red Series. These cutting-edge storage solutions are engineered to meet the diverse needs of surveillance systems. From the fusion of performance and reliability in the Blue Series to the elevated capacities of the Purple Series and the unwavering endurance of the Red Series, these cards redefine the benchmarks of surveillance technology. Samari IT Solutions, the exclusive distributor of Uniview products in Nepal, brings these revolutionary storage solutions to the Himalayan nation, empowering professionals and reshaping the landscape of surveillance technology.

Basic Information About CCTV

CCTV, which stands for Closed-Circuit Television, is a video surveillance system that transmits signals over a private network rather than a public broadcast. This means that the footage captured by CCTV cameras is only accessible to authorized viewers, unlike broadcast television that anyone with a TV can tune into.

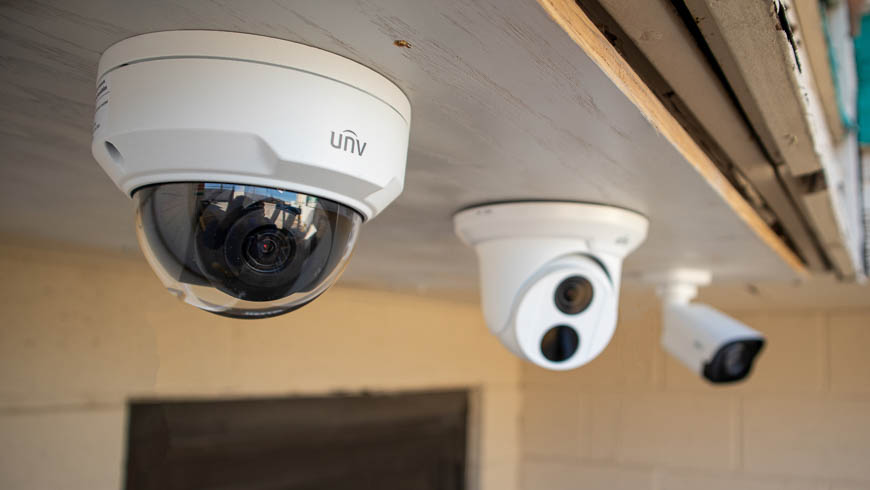

IP CCTV Camera

IP CCTV, or Internet Protocol Closed-Circuit Television, represents a modern approach to video surveillance utilizing digital technology and network connectivity. Unlike traditional analog CCTV systems, IP cameras capture and transmit video data as digital packets using the internet protocol (IP). This enables several advantages and advancements over its analog counterpart.

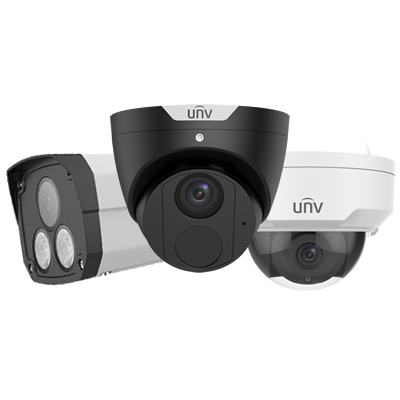

Analog CCTV Camera

Analog CCTV, the original video surveillance technology has been around for decades and paved the way for modern security systems. While surpassed by newer IP technology in some aspects, it still holds its own in specific applications due to its simplicity and affordability.

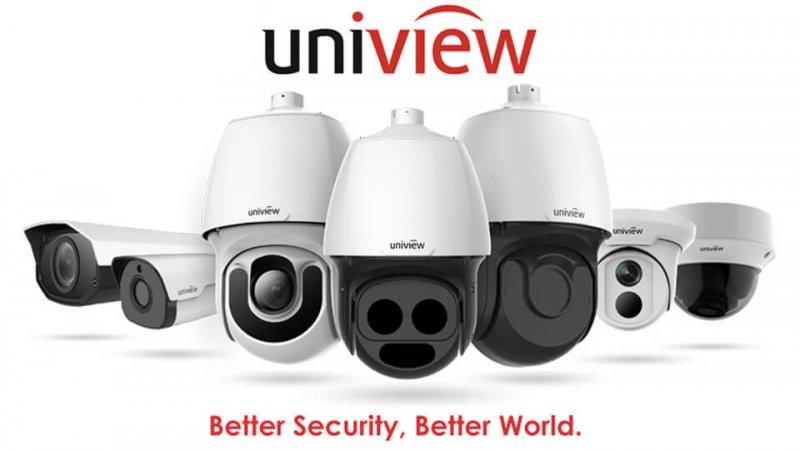

Difference Between Analog and IP CCTV Camera

Analog CCTV remains a budget-friendly option for basic needs, but its limitations become apparent when scalability, high resolution, and advanced features are desired. IP CCTV offers superior video quality, flexibility, and advanced functionalities, but requires a more complex setup and potentially higher initial costs.

Brief Description on NVR and XVR

An NVR is a specialized computer system designed to record video footage captured by IP security cameras. An XVR is the ultimate security chameleon, adapting to your existing camera setup while providing future flexibility.

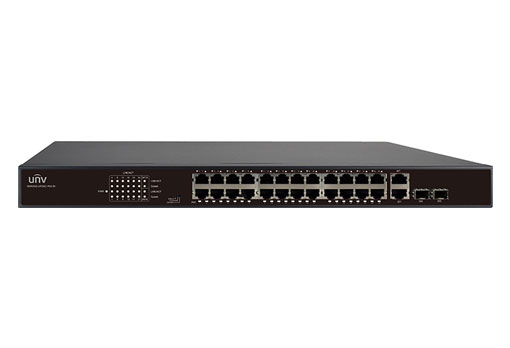

PoE Switch

A Power over Ethernet (PoE) switch is a network switch that can deliver electrical power along with data over Ethernet cables. This eliminates the need for separate power supplies for devices like VoIP phones, IP cameras, and wireless access points, simplifying installation and reducing costs.

Video Streams of IP Cameras

Video streams are like rivers of moving images flowing over the internet. Instead of delivering the entire video file at once, they break it down into smaller chunks sent continuously, allowing you to watch it as it arrives. This makes it possible to view live videos even with limited internet speed.

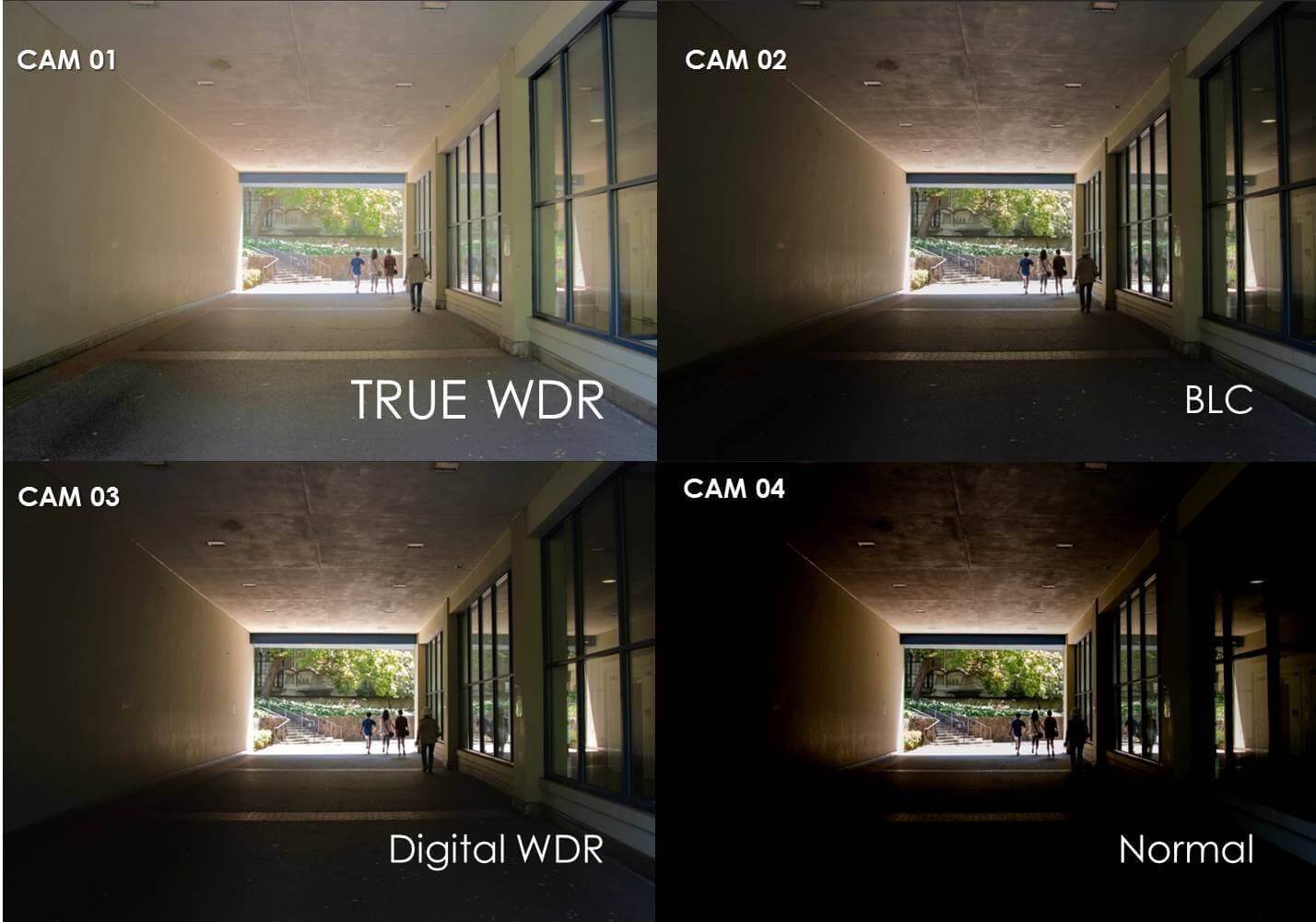

Wide Dynamic Range

WDR technology plays a vital role in ensuring IP cameras perform effectively in real-world scenarios with diverse lighting conditions. By offering a wider dynamic range, they capture clearer and more informative images and videos, enhancing security, monitoring, and various other applications.

Video Encoding

Video encoding is the process of taking raw video data and compressing it into a smaller, manageable file while maintaining acceptable visual quality. This is crucial for efficient storage, transmission, and streaming of videos.

Night vision/IR Technology

Night vision technology in CCTV cameras, also known as Infrared (IR) technology, allows them to capture clear images and videos even in low-light conditions or complete darkness. This is crucial for security and surveillance applications when natural light might be insufficient. Night vision technology has evolved significantly since its inception, starting from early image intensifiers to more advanced thermal imaging systems.

On-Screen Display

On-Screen Display is a valuable tool in the world of CCTV cameras. It's like a hidden control panel accessible directly on the camera's video output, allowing you to adjust and configure various settings without needing additional software or physical controls

White Balance

White balance is a crucial setting in photography and videography that ensures objects appearing white are rendered white in your images, regardless of the lighting conditions. It adjusts the overall color temperature of your photos or videos to accurately represent the scene you're capturing.

Uniview Starlight Technology

Uniview Starlight Technology is a proprietary set of features incorporated into some of their IP cameras to enhance low-light performance and deliver clear images even in near-darkness environments. Uniview StarView series cameras redefine starlight technology with outstanding images at super low illumination during the night for both static and moving scenes.

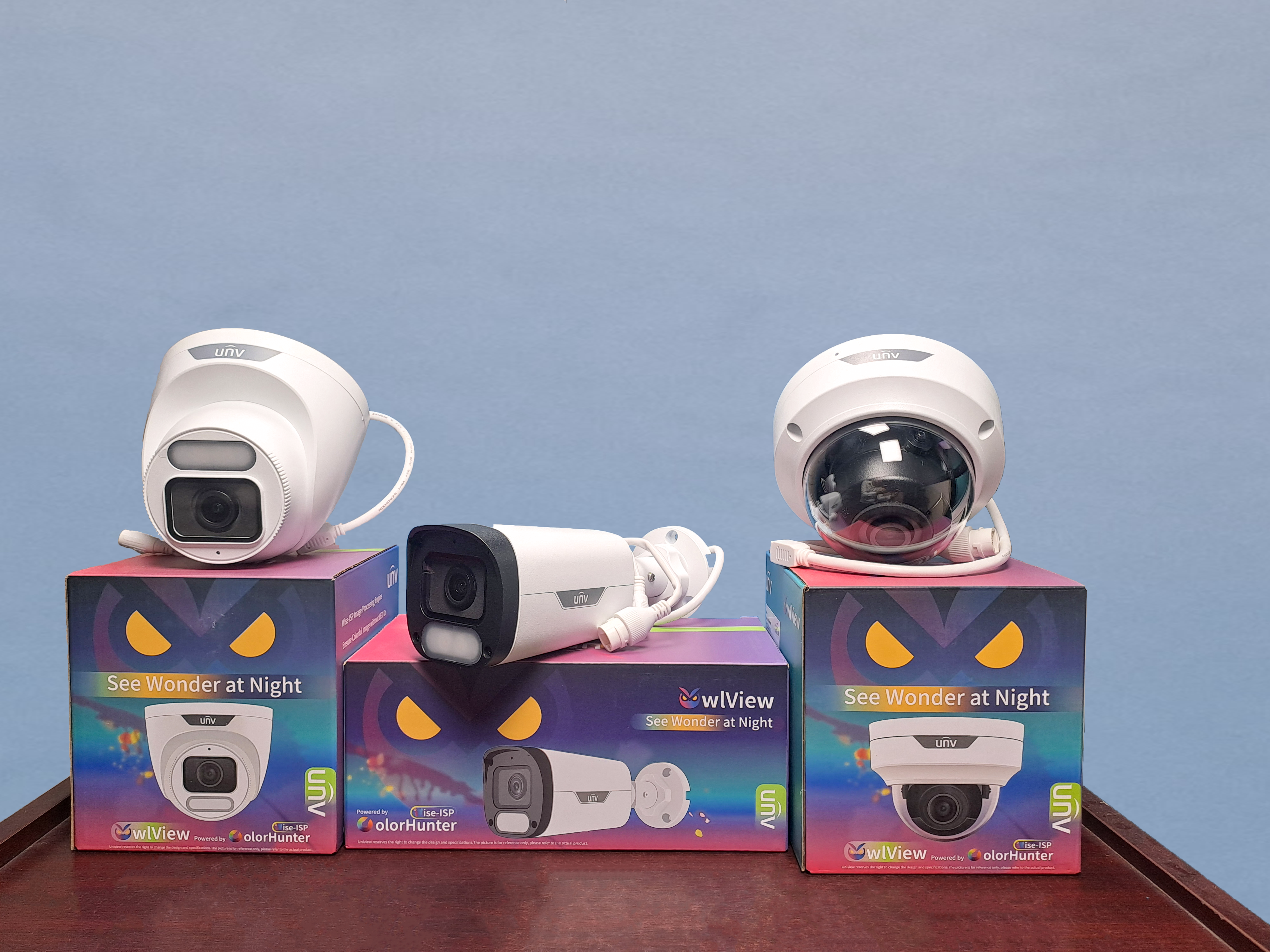

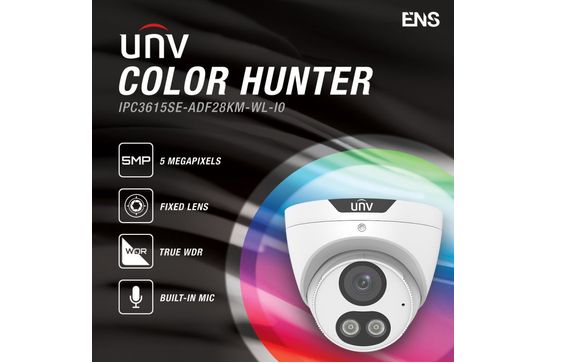

Uniview Colorhunter Technology

Uniview Colorhunter Technology offers a significant improvement in video surveillance capabilities for low-light situations, where traditional security cameras often struggle to capture clear and informative images.

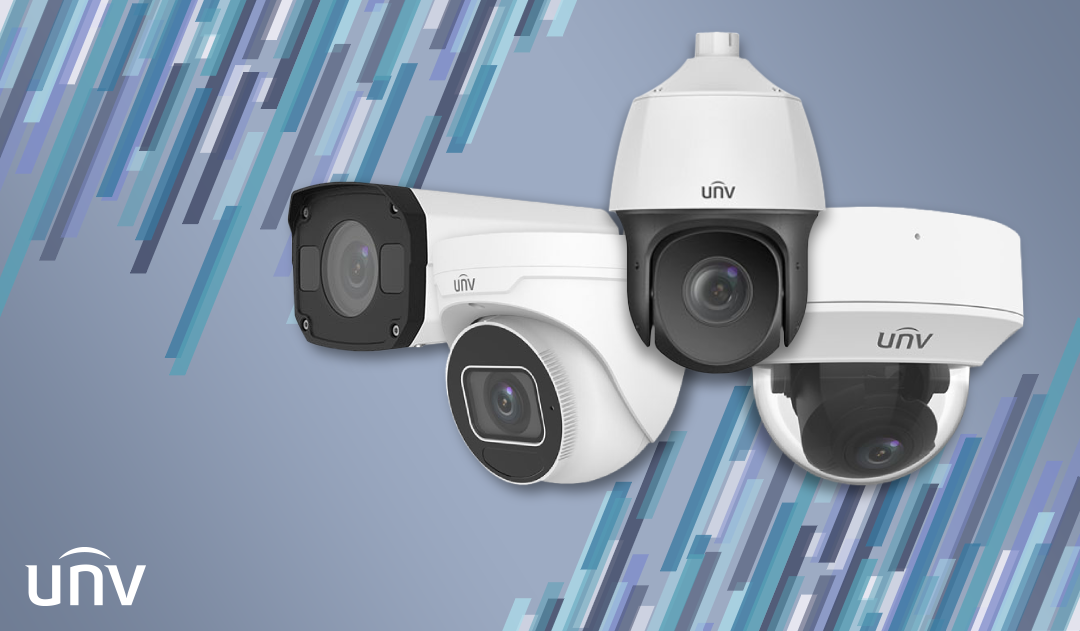

Uniview Lighthunter Technology

Uniview’s LightHunter Technology is an innovative breakthrough in video surveillance. Its main goal is to provide obvious images in ultra-low light conditions. It operates through a combination of advanced hardware and software features.

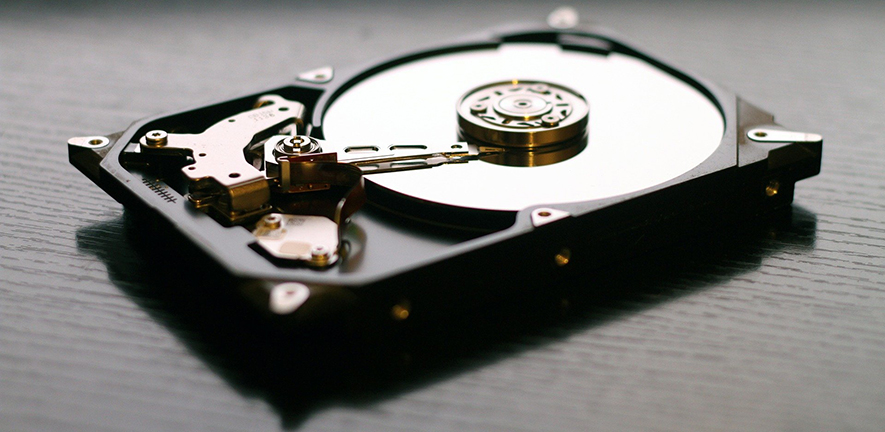

Hard Disk Drive

A hard disk drive (HDD) is an internal or external computer component that stores data, such as the operating system, applications, and user files. HDDs are “non-volatile” storage devices, meaning they retain stored data even when power isn't being supplied.

CMR and SMR Drives

A hard disk drive (HDD) or simply a hard disk, is a non-volatile device that uses magnetic storage to store and retrieve digital data using one or more rapidly rotating platters coated with a magnetic material.

Video Conference Camera

Uniarch video conference cameras are a good option for businesses and individuals who are looking for a high-quality, affordable video conferencing solution.

Surveillance System CCTV Glossary

BNC Connector: BNC is a connector for coaxial cable that is most commonly used for CCTV installations. BLC (Back Light Compensation): This is a feature of security cameras that automatically adjusts the image to compensate for bright light to give more detail on the darker areas of the image. For example, use is to focus on the detail of the face of a person that has the sunlight shining from behind. Brightness: This changes how light the image appears to be. Its value is different in darkness from that in daylight. For example, car headlights' lights appear brighter at night.

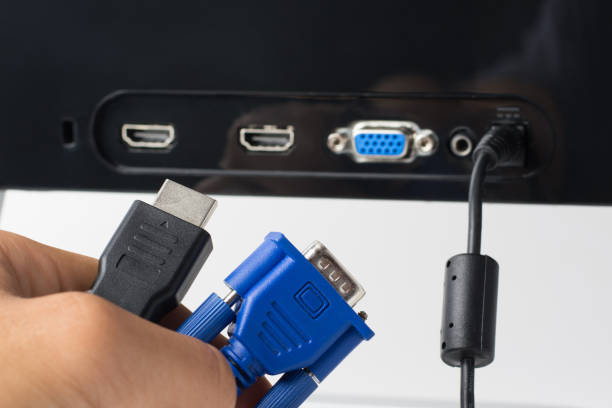

High-Defination Multimedia Interface

HDMI stands for High-Definition Multimedia Interface. It is a digital interface that transmits uncompressed video data and compressed or uncompressed digital audio data from a source device, such as a display controller to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for analog video standards.

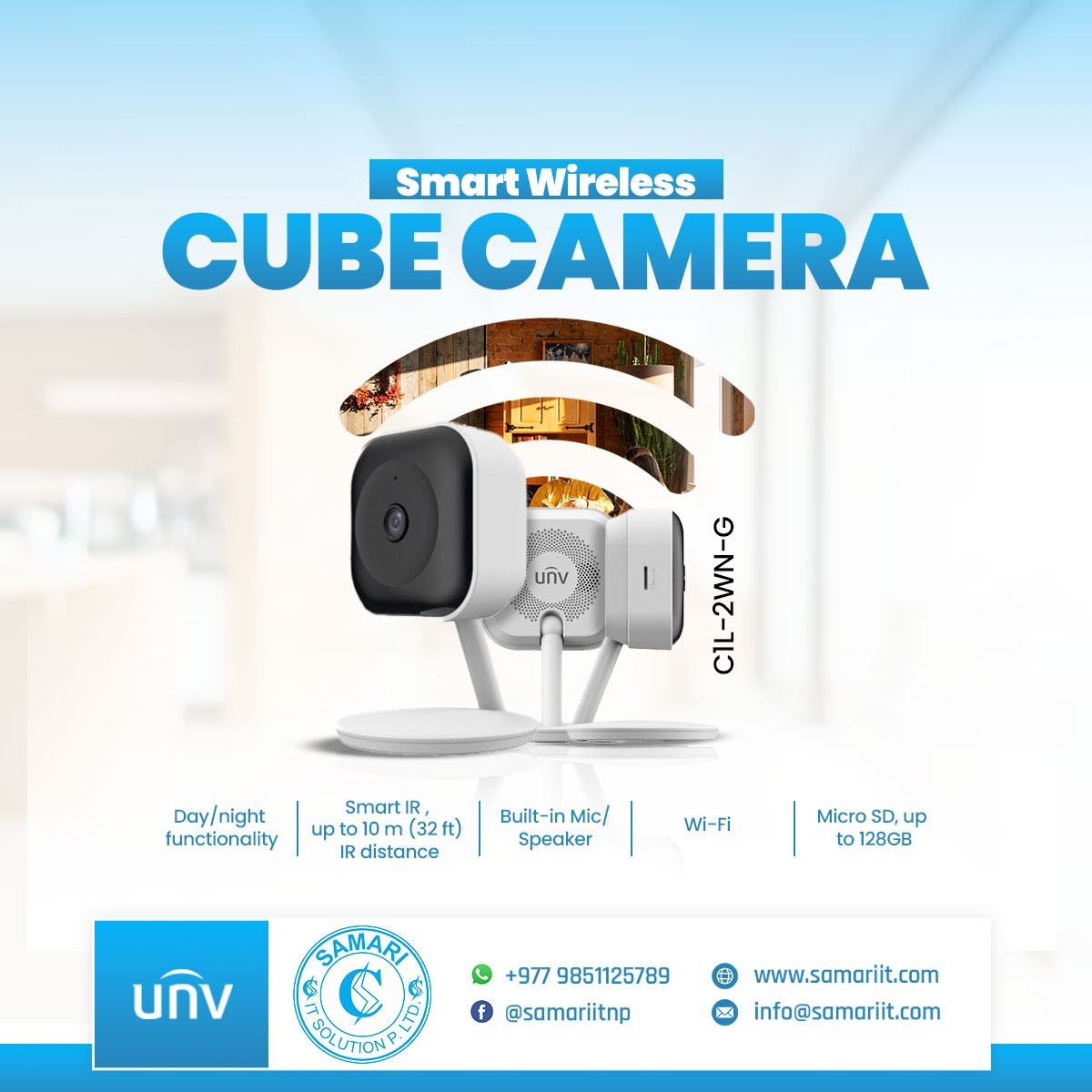

Smart Wireless Cube Camera

C1L-2WN-G is a smart wireless cube camera made by Uniview, a security camera manufacturer. It's a popular indoor security choice as it offers various features.

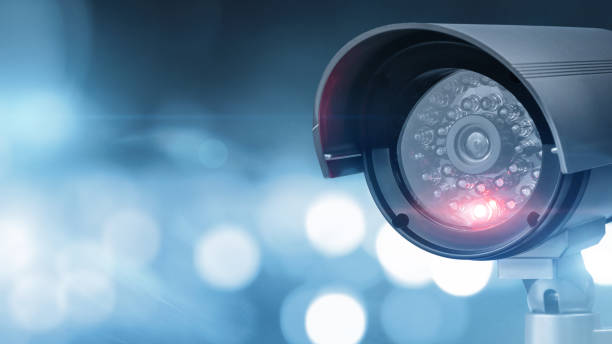

IPC IR light constantly on
